MH gourd type crane

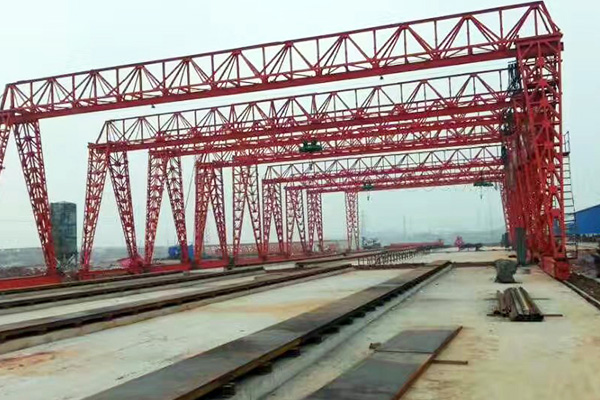

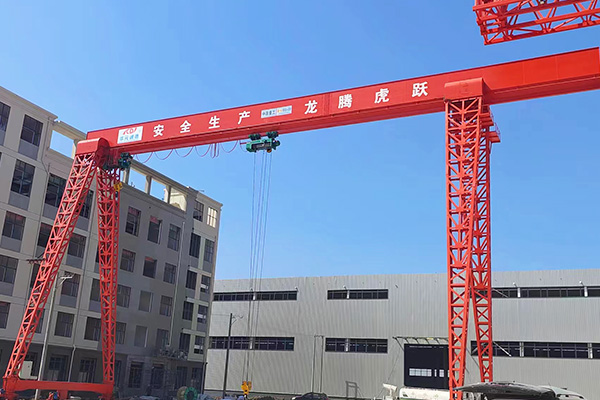

Single-girder type: Main beams, legs, and other components are made of profiled steel cut and spliced, featuring lightweight construction, small windward area, outstanding wind resistance, suitable for open-air and high-wind scenarios;
Box-type: Main beams adopt welded box structures, offering excellent craftsmanship, convenient manufacturing, superior overall rigidity and stability, suitable for scenarios requiring high structural precision.
Equipment Description
Single-girder type: Main beams, legs, and other components are made of profiled steel cut and spliced, featuring lightweight construction, small windward area, outstanding wind resistance, suitable for open-air and high-wind scenarios;
Box-type: Main beams adopt welded box structures, offering excellent craftsmanship, convenient manufacturing, superior overall rigidity and stability, suitable for scenarios requiring high structural precision.
The complete machine consists of the gantry frame (including main beams, legs, and lower cross beams), the lifting mechanism (with CD and MD model electric hoists as the core for vertical lifting of heavy loads), the traveling mechanism (large trolleys moving along ground tracks, small trolleys moving horizontally along the lower flange of the main beams), and the electrical control system. Operation modes include ground pendant control, wireless remote control, and centralized control from the operator's cabin. Power supply options include cable reels or overhead sliding lines, enabling efficient completion of the entire workflow of "lifting - horizontal transfer" for cargo.
Application Fields
Factory / Manufacturing: Handling raw materials and heavy machinery components in workshops, as well as assembly and maintenance of production line equipment;
Warehousing & Logistics: Stacking and loading/unloading of warehouse goods, transfer of bulk materials (e.g., grains, minerals) and packaged goods in logistics centers;
Ports / Terminals / Railway Freight Yards: Loading/unloading of bulk cargo (e.g., coal, sand) at ports, and handling of containers and goods at railway freight yards;
Construction Sites / Engineering Fields: Hoisting beams, columns, and other structural components at construction sites, as well as lifting and transferring materials in hydropower stations and tunnel projects.
Product Advantages
The single-girder type is lightweight with low wind resistance, suitable for open-air and high-wind environments (e.g., ports, open-air material yards); the box-type offers superior craftsmanship and high rigidity, suitable for workshops or scenarios requiring high structural precision. Both structures are optional, covering different indoor and outdoor working environments.
Intelligent Operation, High Efficiency
Supports multiple operation modes such as wireless remote control and cabin control. Some models feature variable frequency speed regulation, achieving lifting speeds up to 12m/min with positioning accuracy <5mm. A single operator can complete complex handling tasks, significantly reducing work cycles.
Versatile Expansion, Multi-Purpose
Electric hoists cover a full range of specifications (lifting capacity: 3 - 16t, span: 12 - 30m), meeting light to medium load requirements. Optional attachments like grabs and electromagnetic discs enable handling of steel, bulk materials, timber, and more, fulfilling lifting process needs across industries.
Economical & Eco-Friendly, Low Maintenance Costs
Compared to traditional lifting equipment, procurement costs are more affordable. The simple mechanical structure and easily replaceable parts allow daily maintenance with minimal training, reducing labor and time costs. Electric drive is energy-efficient and eco-friendly, with no exhaust emissions and low noise, while saving energy costs.
Safe & Reliable, Durable
Equipped with overload protection, travel limiters, and other safety devices, meeting A4 - A5 duty grades. Stable operation in temperatures from -20°C to +40°C, fulfilling industrial requirements for safety and long-term use.
